Introduction to Gravel Processing Materials
Gravel is a fundamental construction material used in countless applications from concrete production to road base construction. Understanding the nature of gravel deposits is crucial for selecting the proper processing equipment. Natural gravel typically consists of rounded particles of various rock types, including granite, limestone, basalt, and river stone, while manufactured gravel is produced through mechanical crushing of bedrock.
The composition and characteristics of gravel vary significantly depending on the source. River gravel typically features smooth, rounded particles, whereas quarry gravel often has more angular fragments. Both types present unique challenges in processing – rounded gravel may require additional crushing to achieve proper particle angularity for construction applications, while angular quarry material may need specialized screening to separate different size fractions effectively.
At Liming Heavy Industry, we recognize that different gravel types demand specific processing approaches. Our engineers have extensive experience in analyzing material properties to recommend the most efficient crushing and screening solutions for each unique application, ensuring optimal production efficiency and product quality.
Gravel Processing Workflow
The transformation of raw gravel into precisely graded aggregate products follows a systematic process designed to maximize efficiency and product quality. A well-designed gravel processing operation typically includes these essential stages:
Primary Crushing
This initial stage reduces raw feed material to a workable size using robust crushing equipment. Large rocks, typically up to 500mm in diameter, are fed into the primary crusher which reduces them to manageable sizes, usually between 100-150mm.
Secondary Crushing
Further reduction of material occurs in this stage to produce intermediate sizes. Secondary crusher continue the size reduction process, typically producing material in the 20-50mm range while improving particle shape.
Tertiary Crushing
For applications requiring specific particle shapes or very fine aggregates, tertiary crushing provides precise control over final product characteristics. This stage is particularly important for producing high-quality concrete aggregates with optimal gradation.
Screening
Throughout the process, screening operations separate material into specific size fractions. Modern screening plants utilize vibrating screens with multiple decks to efficiently sort material into various product categories simultaneously.
Material Handling
Conveyors transport material between process stages, while stockpiling systems organize finished products. Well-designed material handling systems minimize rehandling and prevent contamination between different product grades.
Each stage in this process plays a critical role in determining the final product quality and production efficiency. Proper equipment selection and process design ensure optimal utilization of the raw material while minimizing energy consumption and operational costs.
Application Scope of Our Crushing Equipment
At Liming Heavy Industry, our comprehensive range of crushing equipment serves diverse applications across multiple industries. Our machines process various raw materials into precisely graded aggregates for construction and industrial uses.
Versatile Material Processing
Our crushing systems efficiently handle numerous material types, including:
- Natural deposits such as river gravel, bank run gravel, and pit-run materials
- Quarried rock including granite, limestone, basalt, and sandstone
- Industrial byproducts like construction demolition waste and mine tailings
- Manufactured aggregates from cementitious materials and industrial slags
Industry-Specific Applications
The aggregates produced by our equipment serve critical functions in multiple sectors:
For construction and infrastructure projects, our crushing plants produce aggregates for concrete production, asphalt mixes, road base materials, and drainage layers. The construction industry particularly values consistent gradation and proper particle shape, which our equipment reliably delivers.
In transportation infrastructure, specifically graded aggregates provide stable foundations for roads, railways, and airport runways. Our crushing systems produce materials that meet stringent specifications for these critical applications.
The environmental and landscaping sectors utilize specially processed aggregates for drainage systems, erosion control, and aesthetic applications. Our equipment can produce everything from fine sand for golf course bunkers to large riprap for shoreline protection.
Additionally, specialized industrial applications including filter media, chemical processing substrates, and agricultural limestone all benefit from the precise size control and consistent quality offered by our crushing systems.
Capacity and Types of Crushing Equipment
Selecting the appropriate crushing equipment requires careful consideration of both capacity requirements and material characteristics. Liming Heavy Industry offers a comprehensive range of crusher designed to meet various production needs and operational constraints.
Jaw Crusher for Primary Crushing

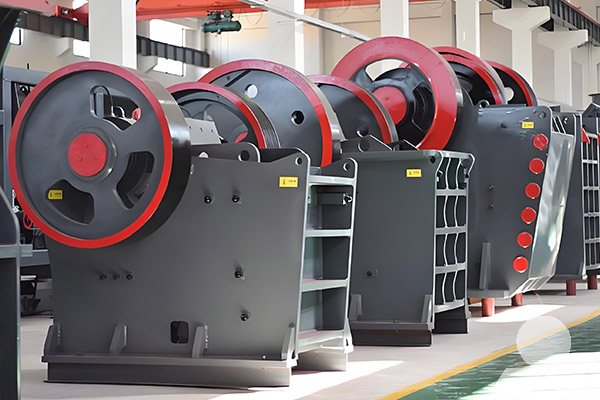

Our C6X Series Jaw Crusher represent the latest generation of primary crushing equipment, engineered for maximum efficiency and durability. These robust machines feature an optimized crushing chamber design and premium components for reliable performance in demanding applications.
| Model | Feed Opening (mm) | Max Feed Size (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|
| C6X110 | 1100×850 | 700 | 160-240 | 160 |
| C6X125 | 1250×950 | 800 | 200-280 | 160 |
| C6X145 | 1450×1100 | 1000 | 300-430 | 200 |
| C6X160 | 1600×1200 | 1100 | 380-550 | 250 |
| C6X200 | 2000×1500 | 1200 | 690-1000 | 400 |
Cone Crusher for Secondary and Tertiary Crushing

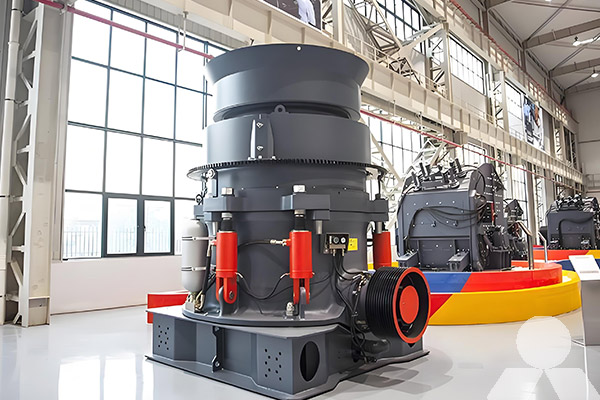

For intermediate and final reduction stages, our HPT Hydraulic Cone Crusher deliver exceptional performance in secondary and tertiary applications. These advanced machines incorporate innovative hydraulic control systems and optimized crushing chambers for superior product shape and increased capacity.
| Model | Cavity Type | Feed Opening (mm) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|
| HPT200 | F (Fine) | 95 | 120-200 | 160 |
| M (Medium) | 120 | 140-220 | 160 | |
| C (Coarse) | 190 | 150-250 | 160 | |
| HPT300 | F (Fine) | 105 | 110-260 | 250 |
| M (Medium) | 150 | 175-320 | 250 | |
| C (Coarse) | 210 | 190-380 | 250 | |
| HPT400 | M (Medium) | 196 | 255-430 | 315 |
| C (Coarse) | 251 | 295-560 | 315 | |
| HPT500 | M (Medium) | 210 | 345-605 | 400 |
| C (Coarse) | 290 | 405-790 | 400 |
Complete Plant Configurations
Beyond individual machines, we engineer complete crushing circuits optimized for specific production requirements:
- 50-100 t/h Plants: Ideal for small to medium operations, typically featuring one jaw crusher and one cone crusher
- 100-300 t/h Plants: Balanced configurations offering excellent efficiency for medium-scale production
- 300-700 t/h Plants: High-capacity systems with multiple crushing stages for large-scale operations
- 700-1300+ t/h Plants: Custom-engineered solutions for the most demanding production requirements
Each configuration is tailored to the specific characteristics of the feed material and the desired end products, ensuring optimal performance and efficiency.
Equipment Technology and Innovation
At Liming Heavy Industry, we continuously integrate advanced technologies into our crushing and screening equipment to deliver superior performance, reliability, and operational efficiency.
Advanced Crushing Technology
Our HPT Hydraulic Cone Crusher incorporate several groundbreaking innovations that set new standards for crushing performance:
The fixed spindle design combined with an optimized small spherical radius creates a more efficient crushing action than conventional designs. This innovative approach increases efficiency by 5-15% compared to traditional spring cone crusher while delivering 35-60% higher production capacity.
Intelligent Hydraulic Control Systems represent another significant advancement. These sophisticated systems continuously monitor and adjust crusher operations in real-time, optimizing performance and providing comprehensive protection against mechanical overloads. The automated iron-passing function ensures that tramp metal is safely discharged without damaging the crusher, while the automatic cavity clearing feature reduces downtime during chamber cleaning operations.
Screening Innovations
Modern screening technology plays a crucial role in aggregate classification efficiency. Our screening solutions incorporate:
High-energy screen boxes with precisely calculated vibration patterns ensure efficient material separation across various applications including quarrying, mining, sand and gravel, coal, woodchip, and topsoil processing. These advanced screening systems maintain consistent performance even with difficult-to-screen materials.
Versatile screening configurations address diverse operational requirements. The triple-deck screen configuration available in our premium models offers two full-size 6.1m x 1.53m top and middle decks plus a 5.55m x 1.53m bottom deck, providing a total screening area of 27m² (290ft²). This expansive screening surface, combined with an optional integrated high-volume rinser, significantly increases versatility for wet applications.
Automation and Smart Operation
Modern crushing operations increasingly rely on sophisticated control systems to optimize performance:
T-Link telematics with complimentary seven-year data subscription comes standard on our equipment, providing real-time monitoring of key operational parameters. This advanced system enables remote diagnostics, performance tracking, and preventive maintenance scheduling.
Hybrid power technology allows operation via either the onboard engine or external power sources, significantly reducing fuel consumption and operating costs in suitable applications. The optimized powerpack operates at lower engine speeds while maintaining performance, delivering long-term cost savings through reduced fuel consumption and extended engine life.
Common Challenges and Solutions
Gravel processing operations face several common challenges that can impact productivity, product quality, and operational costs. Understanding these challenges and implementing effective solutions is crucial for maintaining efficient operations.
Equipment Wear and Maintenance
The abrasive nature of gravel accelerates wear on crushing components, potentially leading to increased downtime and maintenance costs.
Our crusher incorporate advanced wear protection systems. The HPT Hydraulic Cone Crusher features wear parts made from special alloy steels with exceptional abrasion resistance. Additionally, the innovative design allows worn components to be replaced quickly, minimizing downtime. The centralized lubrication system ensures proper lubrication of all critical components, further extending service life.
Inconsistent Feed Material
Variations in feed material size, hardness, or moisture content can significantly impact crusher performance and product consistency.
Our crushing systems are designed with sophisticated control systems that automatically compensate for feed variations. The hydraulic adjustment systems in our cone crusher maintain consistent product size distribution even with fluctuating feed conditions. For extreme variations, optional vibrating grid pre-screens can be installed to remove oversize material before it reaches the crusher.
Product Gradation Control
Meeting precise product specifications requires accurate control over particle size distribution.
Solution: Modern screening plants with multiple deck configurations enable precise classification of finished products. Our screening equipment features high-energy screen boxes that maintain separation efficiency even with damp or sticky materials. For operations requiring multiple products, customized screen configurations with specialized media can be engineered to exact specifications.
Energy Efficiency
Crushing operations are energy-intensive, making energy efficiency a significant factor in operational costs.
Solution: Our equipment incorporates multiple energy-saving technologies. The hybrid power option allows connection to external power sources, eliminating fuel consumption during stationary operation. Optimized crushing chambers reduce energy consumption per ton of processed material, while variable speed feeders match feed rate to crusher capacity, preventing energy waste.
Case Study: Successful Gravel Processing Operation
A concrete and sand production company in Shanxi, China, faced challenges with their existing gravel processing operation, including inconsistent product quality, high maintenance costs, and insufficient capacity to meet growing demand. After consulting with Liming Heavy Industry engineers, they implemented a comprehensive solution incorporating our advanced crushing and screening equipment.
Operational Challenge
The operation processes local limestone with a compressive strength of 120-150 MPa. The existing two-stage crushing circuit produced excessive fines while struggling to maintain consistent product gradation. Additionally, capacity limitations constrained their ability to meet market demand, particularly for specialized concrete aggregates.
Implemented Solution
The new processing plant designed by our engineers featured:
- Primary Crushing Station: C6X125 Jaw Crusher receiving direct feed from the quarry
- Secondary Crushing Stage: HPT300 Cone Crusher with medium cavity configuration
- Tertiary Crushing Stage: HPT200 Cone Crusher with fine cavity for precise product shaping
- Screening System: Triple-deck screening plant with integrated rinsing capability
Performance Results
The implementation delivered significant improvements across all operational metrics:
- Production Capacity: Increased from 180 t/h to 240 t/h, a 33% improvement
- Product Quality: Achieved consistent gradation with cubical particle shape exceeding 92%
- Operating Costs: Reduced by 18% through lower wear part consumption and energy efficiency
- Maintenance Downtime: Decreased by 35% due to improved accessibility and reliable components
- Product Range: Expanded capability to produce six different specification products simultaneously
The success of this installation demonstrates how properly selected and configured gravel crushing and screening equipment can transform operational performance, delivering both quantitative and qualitative improvements.
Why Choose Liming Heavy Industry
With decades of experience in designing and manufacturing crushing and screening equipment, Liming Heavy Industry has established itself as a trusted partner for aggregate producers worldwide. Our commitment to innovation, quality, and customer support sets us apart in the competitive equipment marketplace.
Engineering Excellence
Our comprehensive research and development program continuously advances crushing technology. The C6X Series Jaw Crusher and HPT Hydraulic Cone Crusher represent the culmination of extensive engineering refinement, incorporating the latest advancements in materials science, mechanical design, and control systems.
Each machine undergoes rigorous testing and validation before production, ensuring reliable performance in the most demanding applications. Our manufacturing facilities utilize advanced production equipment and quality control processes to maintain consistent standards across our product line.
Comprehensive Customer Support
We recognize that equipment performance depends not only on machine quality but also on proper application, operation, and maintenance. Our customer support services include:
- Application Engineering: Our technical team works closely with customers to analyze specific requirements and recommend optimal equipment configurations
- Installation and Commissioning: Field service technicians ensure proper installation and initial operation
- Operator Training: Comprehensive training programs equip operational staff with the knowledge to maximize equipment performance
- Parts and Service Support: An extensive network of service centers and parts depots ensures prompt support when needed
- Process Optimization: Ongoing technical support helps customers continuously improve their operations
Global Experience
With thousands of installations worldwide, we have accumulated extensive experience across diverse applications and operating conditions. This global perspective enables us to develop equipment that performs reliably in environments ranging from tropical climates to arctic conditions, from sea level to high-altitude operations.
Conclusion
Effective gravel crushing and screening operations require properly selected, configured, and maintained equipment. The right crushing solution directly impacts production costs, product quality, and operational reliability. With advancing technology in both crushing and screening systems, modern operations can achieve unprecedented levels of efficiency and product quality.
At Liming Heavy Industry, our comprehensive range of gravel crushing and screening equipment, from the robust C6X Series Jaw Crusher to the sophisticated HPT Hydraulic Cone Crusher, provides solutions for operations of all sizes and requirements. Our commitment to technological innovation, combined with extensive application expertise, enables us to deliver crushing solutions that maximize our customers’ operational efficiency and profitability.
As the aggregate industry continues to evolve with changing market demands and increasingly stringent specifications, having an equipment partner with the technical capability and practical experience to address these challenges becomes increasingly valuable. We invite you to contact our technical team to discuss how our gravel crushing and screening equipment can optimize your specific operation.
